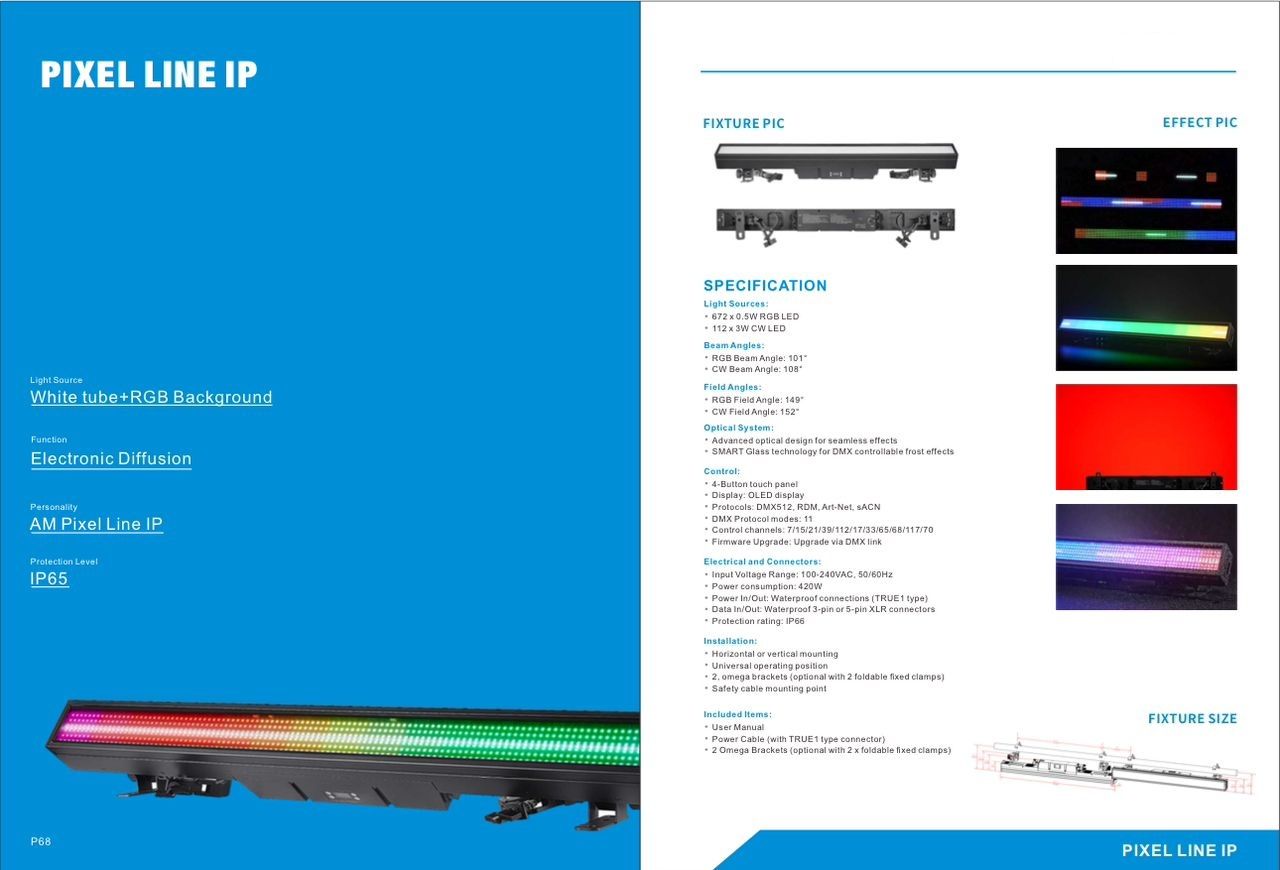

Description

Light Sources:

• 672 x 0.5W RGB LED
• 112 X 3W CW LED

Beam Angles:

• RGB Beam Angle: 101°
• CW Beam Angle: 108°

Field Angle:

• RGB Field Angle: 149°
• CW Field Angle: 152°

Optical System:

• Advanced optical design for seamless effects
• SMART Glass technology for DMX Controllable frost effects

Control:

• 4-Button touch panel
• Display: OLED display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol modes: 11
• Control Channels: 7/15/21/39/112/17/33/65/68/117/70
• Firmware Upgrade: Upgrade via DMX link

Electrical and Connectors:

• Input Voltage Range: 100-240VAC, 50/60Hz
• Power Consumption: 420W
• Power In/Out: Waterproof connections (TRUE 1 type)
• Data In/Out: Waterproof 3-pin or 5-pin XLR connectors
• Protection rating: IP65

Installation:

• Horizontal or vertical mounting
• Universal operating position
• 2 omega brackets (optional with 2 foldable fixed clamps)
• Safety cable mounting point

Included Items:

• User Manual
• Power cable (with TRUE 1 type connector)
